Transpilation Optimizations with SABRE

Usage estimate: under one minute on a Heron r2 processor (NOTE: This is an estimate only. Your runtime might vary.)

Background

Transpilation is a critical step in Qiskit that converts quantum circuits into forms compatible with specific quantum hardware. It involves two key stages: qubit layout (mapping logical qubits to physical qubits on the device) and gate routing (ensuring multi-qubit gates respect device connectivity by inserting SWAP gates as needed).

SABRE (SWAP-Based Bidirectional heuristic search algorithm) is a powerful optimization tool for both layout and routing. It is especially effective for large-scale circuits (100+ qubits) and devices with complex coupling maps, like the IBM® Heron, where the exponential growth in possible qubit mappings demands efficient solutions.

Why use SABRE?

SABRE minimizes the number of SWAP gates and reduces circuit depth, improving circuit performance on real hardware. Its heuristic-based approach makes it ideal for advanced hardware and large, complex circuits. Recent improvements introduced in the LightSABRE algorithm further optimize SABRE’s performance, offering faster runtimes and fewer SWAP gates. These enhancements make it even more effective for large-scale circuits.

What you’ll learn

This tutorial is divided into two parts:

1. Learn to use SABRE with Qiskit patterns for advanced optimization of large circuits.
2. Leverage qiskit_serverless to maximize SABRE’s potential for scalable and efficient transpilation.

You will:

• Optimize SABRE for circuits with 100+ qubits, surpassing default transpilation settings like optimization_level=3.
• Explore LightSABRE enhancements that improve runtime and reduce gate counts.
• Customize key SABRE parameters (swap_trials, layout_trials, max_iterations, heuristic) to balance circuit quality and transpilation runtime.

Requirements

Before starting this tutorial, be sure you have the following installed:

• Qiskit SDK v1.0 or later, with visualization support
• Qiskit Runtime v0.28 or later (pip install qiskit-ibm-runtime)
• Serverless (pip install qiskit-ibm-catalog qiskit_serverless)

Setup

# Added by doQumentation — installs packages not in the Binder environment
%pip install -q qiskit-serverless

from qiskit import QuantumCircuit
from qiskit.quantum_info import SparsePauliOp
from qiskit_ibm_catalog import QiskitServerless, QiskitFunction
from qiskit_ibm_runtime import QiskitRuntimeService
from qiskit_ibm_runtime import EstimatorOptions
from qiskit_ibm_runtime import EstimatorV2 as Estimator
from qiskit.transpiler import CouplingMap
from qiskit.transpiler.passes import SabreLayout, SabreSwap
from qiskit.transpiler.preset_passmanagers import generate_preset_pass_manager
import matplotlib.pyplot as plt
import numpy as np
import time

Part I. Using SABRE with Qiskit patterns

SABRE can be used in Qiskit to optimize quantum circuits by handling both the qubit layout and gate routing stages. In this section, we’ll guide you through the minimal example of using SABRE with Qiskit patterns, with the primary focus on step 2 of optimization.

To run SABRE, you need:

• A DAG (Directed Acyclic Graph) representation of your quantum circuit.
• The coupling map from the backend, which specifies how qubits are physically connected.
• The SABRE pass, which applies the algorithm to optimize the layout and routing.

For this part, we’ll focus on the SabreLayout pass. It performs both layout and routing trials, working to find the most efficient initial layout while minimizing the number of SWAP gates needed. Importantly, SabreLayout, just by itself, internally optimizes both the layout and routing by storing the solution that adds the least number of SWAP gates. Note that when using just SabreLayout, we cannot change the heuristic of SABRE, but we are able to customize the number of layout_trials.

Step 1: Map classical inputs to a quantum problem

A GHZ (Greenberger-Horne-Zeilinger) circuit is a quantum circuit that prepares an entangled state where all qubits are either in the |0...0⟩ or |1...1⟩ state. The GHZ state for $n$ qubits is mathematically represented as: $|\text{GHZ}\rangle = \frac{1}{\sqrt{2}} \left( |0\rangle^{\otimes n} + |1\rangle^{\otimes n} \right)$

It is constructed by applying:

1. A Hadamard gate to the first qubit to create superposition.
2. A series of CNOT gates to entangle the remaining qubits with the first.

For this example, we intentionally construct a star-topology GHZ circuit instead of a linear-topology one. In the star topology, the first qubit acts as the "hub," and all other qubits are entangled directly with it using CNOT gates. This choice is deliberate because, while the linear topology GHZ state can theoretically be implemented in $O(N)$ depth on a linear coupling map without any SWAP gates, SABRE would trivially find an optimal solution by mapping a 100-qubit GHZ circuit to a subgraph of the backend's heavy-hex coupling map.

The star topology GHZ circuit poses a significantly more challenging problem. Although it can still theoretically be executed in $O(N)$ depth without SWAP gates, finding this solution requires identifying an optimal initial layout, which is much harder due to the non-linear connectivity of the circuit. This topology serves as a better test case for evaluating SABRE, as it demonstrates how configuration parameters impact layout and routing performance under more complex conditions.

Notably:

• The HighLevelSynthesis tool can produce the optimal $O(N)$ depth solution for the star topology GHZ circuit without introducing SWAP gates, like shown in the image above.
• Alternatively, the StarPrerouting pass can reduce the depth further by guiding SABRE's routing decisions, though it may still introduce some SWAP gates. However, StarPrerouting increases runtime and requires integration into the initial transpilation process.

For the purposes of this tutorial, we exclude both HighLevelSynthesis and StarPrerouting to isolate and highlight the direct impact of SABRE configuration on runtime and circuit depth. By measuring the expectation value $\langle Z_0 Z_i \rangle$ for each qubit pair, we analyze:

• How well SABRE reduces SWAP gates and circuit depth.
• The effect of these optimizations on the fidelity of the executed circuit, where deviations from $\langle Z_0 Z_i \rangle = 1$ indicate loss of entanglement.!

# set seed for reproducibility
seed = 42
num_qubits = 110

# Create GHZ circuit
qc = QuantumCircuit(num_qubits)
qc.h(0)
for i in range(1, num_qubits):
    qc.cx(0, i)

qc.measure_all()

Next, we will map the operators of interest to evaluate the behavior of the system. Specifically, we will use ZZ operators between qubits to examine how the entanglement degrades as the qubits become farther apart. This analysis is critical because inaccuracies in the expectation values $\langle Z_0 Z_i \rangle$ for distant qubits can reveal the impact of noise and errors in the circuit execution. By studying these deviations, we gain insight into how well the circuit preserves entanglement under different SABRE configurations and how effectively SABRE minimizes the impact of hardware constraints.

# ZZII...II, ZIZI...II, ... , ZIII...IZ
operator_strings = [
    "Z" + "I" * i + "Z" + "I" * (num_qubits - 2 - i)
    for i in range(num_qubits - 1)
]
print(operator_strings)
print(len(operator_strings))

operators = [SparsePauliOp(operator) for operator in operator_strings]

['ZZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZIII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZII', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZI', 'ZIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIZ']
109

Step 2: Optimize problem for quantum hardware execution

In this step, we focus on optimizing the circuit layout for execution on a specific quantum hardware device with 127 qubits. This is the main focus of the tutorial, as we perform SABRE optimizations and transpilation to achieve the best circuit performance. Using the SabreLayout pass, we determine an initial qubit mapping that minimizes the need for SWAP gates during routing. By passing the coupling_map of the target backend, SabreLayout adapts the layout to the device's connectivity constraints.

We will use generate_preset_pass_manager with optimization_level=3 for the transpilation process and customize the SabreLayout pass with different configurations. The goal is to find a setup that produces a transpiled circuit with the lowest size and/or depth, demonstrating the impact of SABRE optimizations.

Why Are Circuit Size and Depth Important?

• Lower size (gate count): Reduces the number of operations, minimizing opportunities for errors to accumulate.
• Lower depth: Shortens the overall execution time, which is critical for avoiding decoherence and maintaining quantum state fidelity.

By optimizing these metrics, we improve the circuit’s reliability and execution accuracy on noisy quantum hardware. Select the backend.

service = QiskitRuntimeService()
# backend = service.least_busy(
#    operational=True, simulator=False, min_num_qubits=127
# )
backend = service.backend("ibm_boston")
print(f"Using backend: {backend.name}")

Using backend: ibm_boston

To evaluate the impact of different configurations on circuit optimization, we will create three pass managers, each with unique settings for the SabreLayout pass. These configurations help analyze the trade-off between circuit quality and transpilation time.

Key parameters

• max_iterations: The number of forward-backward routing iterations to refine the layout and reduce routing costs.
• layout_trials: The number of random initial layouts tested, selecting the one that minimizes SWAP gates.
• swap_trials: The number of routing trials for each layout, refining gate placement for better routing.

Increase layout_trials and swap_trials to perform more thorough optimization, at the cost of increased transpilation time.

Configurations in this tutorial

1. pm_1: Default settings with optimization_level=3.

   • max_iterations=4
   • layout_trials=20
   • swap_trials=20

2. pm_2: Increases the number of trials for better exploration.

   • max_iterations=4
   • layout_trials=200
   • swap_trials=200

3. pm_3: Extends pm_2 by increasing the number of iterations for further refinement.

   • max_iterations=8
   • layout_trials=200
   • swap_trials=200

By comparing the results of these configurations, we aim to determine which achieves the best balance between circuit quality (for example, size and depth) and computational cost.

# Get the coupling map from the backend
cmap = CouplingMap(backend().configuration().coupling_map)

# Create the SabreLayout passes for the custom configurations
sl_2 = SabreLayout(
    coupling_map=cmap,
    seed=seed,
    max_iterations=4,
    layout_trials=200,
    swap_trials=200,
)
sl_3 = SabreLayout(
    coupling_map=cmap,
    seed=seed,
    max_iterations=8,
    layout_trials=200,
    swap_trials=200,
)

# Create the pass managers, need to first create then configure the SabreLayout passes
pm_1 = generate_preset_pass_manager(
    optimization_level=3, backend=backend, seed_transpiler=seed
)
pm_2 = generate_preset_pass_manager(
    optimization_level=3, backend=backend, seed_transpiler=seed
)
pm_3 = generate_preset_pass_manager(
    optimization_level=3, backend=backend, seed_transpiler=seed
)

Now we can configure the SabreLayout pass in the custom pass managers. To do this we know that for the default generate_preset_pass_manager on optimization_level=3, the SabreLayout pass is at index 2, as SabreLayout occurs after SetLayout and VF2Laout passes. We can access this pass and modify its parameters.

pm_2.layout.replace(index=2, passes=sl_2)
pm_3.layout.replace(index=2, passes=sl_3)

With each pass manager configured, we will now execute the transpilation process for each. To compare results, we will track key metrics, including the transpilation time, the depth of the circuit (measured as the two-qubit gate depth), and the total number of gates in the transpiled circuits

# Transpile the circuit with each pass manager and measure the time
t0 = time.time()
tqc_1 = pm_1.run(qc)
t1 = time.time() - t0
t0 = time.time()
tqc_2 = pm_2.run(qc)
t2 = time.time() - t0
t0 = time.time()
tqc_3 = pm_3.run(qc)
t3 = time.time() - t0

# Obtain the depths and the total number of gates (circuit size)
depth_1 = tqc_1.depth(lambda x: x.operation.num_qubits == 2)
depth_2 = tqc_2.depth(lambda x: x.operation.num_qubits == 2)
depth_3 = tqc_3.depth(lambda x: x.operation.num_qubits == 2)
size_1 = tqc_1.size()
size_2 = tqc_2.size()
size_3 = tqc_3.size()

# Transform the observables to match the backend's ISA
operators_list_1 = [op.apply_layout(tqc_1.layout) for op in operators]
operators_list_2 = [op.apply_layout(tqc_2.layout) for op in operators]
operators_list_3 = [op.apply_layout(tqc_3.layout) for op in operators]

# Compute improvements compared to pass manager 1 (default)
depth_improvement_2 = ((depth_1 - depth_2) / depth_1) * 100
depth_improvement_3 = ((depth_1 - depth_3) / depth_1) * 100
size_improvement_2 = ((size_1 - size_2) / size_1) * 100
size_improvement_3 = ((size_1 - size_3) / size_1) * 100
time_increase_2 = ((t2 - t1) / t1) * 100
time_increase_3 = ((t3 - t1) / t1) * 100

print(
    f"Pass manager 1 (4,20,20)  : Depth {depth_1}, Size {size_1}, Time {t1:.4f} s"
)
print(
    f"Pass manager 2 (4,200,200): Depth {depth_2}, Size {size_2}, Time {t2:.4f} s"
)
print(f"  - Depth improvement: {depth_improvement_2:.2f}%")
print(f"  - Size improvement: {size_improvement_2:.2f}%")
print(f"  - Time increase: {time_increase_2:.2f}%")
print(
    f"Pass manager 3 (8,200,200): Depth {depth_3}, Size {size_3}, Time {t3:.4f} s"
)
print(f"  - Depth improvement: {depth_improvement_3:.2f}%")
print(f"  - Size improvement: {size_improvement_3:.2f}%")
print(f"  - Time increase: {time_increase_3:.2f}%")

Pass manager 1 (4,20,20)  : Depth 439, Size 2346, Time 0.5775 s
Pass manager 2 (4,200,200): Depth 395, Size 2070, Time 3.9927 s
  - Depth improvement: 10.02%
  - Size improvement: 11.76%
  - Time increase: 591.43%
Pass manager 3 (8,200,200): Depth 375, Size 1873, Time 2.3079 s
  - Depth improvement: 14.58%
  - Size improvement: 20.16%
  - Time increase: 299.67%

The results demonstrate that increasing the number of trials (layout_trials and swap_trials) can significantly improve circuit quality by reducing both depth and size. However, this improvement often comes at the cost of increased runtime due to the additional computation required to explore more potential layouts and routing paths.

Increasing the max_iterations can further enhance optimization by refining the layout through more forward-backward routing cycles. In this case, increasing max_iterations resulted in the most significant reduction in circuit depth and size, even reducing runtime compared to pm_2, likely by streamlining subsequent optimization stages. It’s important to note, however, that the effectiveness of increasing max_iterations can vary significantly depending on the circuit. While more iterations may yield better layout and routing choices, they provide no guarantees and depend heavily on the circuit’s structure and the complexity of the connectivity constraints

# Plot the results of the metrics
times = [t1, t2, t3]
depths = [depth_1, depth_2, depth_3]
sizes = [size_1, size_2, size_3]
pm_names = [
    "pm_1 (4 iter, 20 trials)",
    "pm_2 (4 iter, 200 trials)",
    "pm_3 (8 iter, 200 trials)",
]
colors = plt.cm.viridis(np.linspace(0.2, 0.8, len(pm_names)))

# Create a figure with three subplots
fig, axs = plt.subplots(3, 1, figsize=(6, 9), sharex=True)
axs[0].bar(pm_names, times, color=colors)
axs[0].set_ylabel("Time (s)", fontsize=12)
axs[0].set_title("Transpilation Time", fontsize=14)
axs[0].grid(axis="y", linestyle="--", alpha=0.7)
axs[1].bar(pm_names, depths, color=colors)
axs[1].set_ylabel("Depth", fontsize=12)
axs[1].set_title("Circuit Depth", fontsize=14)
axs[1].grid(axis="y", linestyle="--", alpha=0.7)
axs[2].bar(pm_names, sizes, color=colors)
axs[2].set_ylabel("Size", fontsize=12)
axs[2].set_title("Circuit Size", fontsize=14)
axs[2].set_xticks(range(len(pm_names)))
axs[2].set_xticklabels(pm_names, fontsize=10, rotation=15)
axs[2].grid(axis="y", linestyle="--", alpha=0.7)

# Add some spacing between subplots
plt.tight_layout()
plt.show()

Step 3: Execute using Qiskit primitives

In this step, we use the Estimator primitive to calculate the expectation values $\langle Z_0 Z_i \rangle$ for the ZZ operators, evaluating the entanglement and execution quality of the transpiled circuits. To align with typical user workflows, we submit the job for execution and apply error suppression using dynamical decoupling, a technique that mitigates decoherence by inserting gate sequences to preserve qubit states. Additionally, we specify a resilience level to counteract noise, with higher levels providing more accurate results at the cost of increased processing time. This approach assesses the performance of each pass manager configuration under realistic execution conditions.

options = EstimatorOptions()
options.resilience_level = 2
options.dynamical_decoupling.enable = True
options.dynamical_decoupling.sequence_type = "XY4"

# Create an Estimator object
estimator = Estimator(backend, options=options)

# Submit the circuit to Estimator
job_1 = estimator.run([(tqc_1, operators_list_1)])
job_1_id = job_1.job_id()
print(job_1_id)

job_2 = estimator.run([(tqc_2, operators_list_2)])
job_2_id = job_2.job_id()
print(job_2_id)

job_3 = estimator.run([(tqc_3, operators_list_3)])
job_3_id = job_3.job_id()
print(job_3_id)

d5k0qs7853es738dab6g
d5k0qsf853es738dab70
d5k0qsf853es738dab7g

# Run the jobs
result_1 = job_1.result()[0]
print("Job 1 done")
result_2 = job_2.result()[0]
print("Job 2 done")
result_3 = job_3.result()[0]
print("Job 3 done")

Job 1 done
Job 2 done
Job 3 done

Step 4: Post-process and return result in desired classical format

Once the job completes, we analyze the results by plotting the expectation values $\langle Z_0 Z_i \rangle$ for each qubit. In an ideal simulation, all $\langle Z_0 Z_i \rangle$ values should be 1, reflecting perfect entanglement across the qubits. However, due to noise and hardware constraints, the expectation values typically decrease as i increases, revealing how entanglement degrades over distance.

In this step, we compare the results from each pass manager configuration to the ideal simulation. By examining the deviation of $\langle Z_0 Z_i \rangle$ from 1 for each configuration, we can quantify how well each pass manager preserves entanglement and mitigates the effects of noise. This analysis directly assesses the impact of SABRE optimizations on execution fidelity and highlights which configuration best balances optimization quality and execution performance.

The results will be visualized to highlight differences across pass managers, showcasing how improvements in layout and routing influence the final circuit execution on noisy quantum hardware.

data = list(range(1, len(operators) + 1))  # Distance between the Z operators

values_1 = list(result_1.data.evs)
values_2 = list(result_2.data.evs)
values_3 = list(result_3.data.evs)

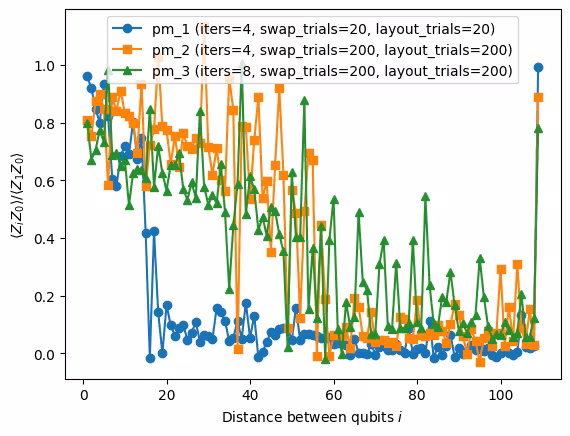

plt.plot(
    data,
    values_1,
    marker="o",
    label="pm_1 (iters=4, swap_trials=20, layout_trials=20)",
)
plt.plot(
    data,
    values_2,
    marker="s",
    label="pm_2 (iters=4, swap_trials=200, layout_trials=200)",
)
plt.plot(
    data,
    values_3,
    marker="^",
    label="pm_3 (iters=8, swap_trials=200, layout_trials=200)",
)
plt.xlabel("Distance between qubits $i$")
plt.ylabel(r"$\langle Z_i Z_0 \rangle / \langle Z_1 Z_0 \rangle $")
plt.legend()
plt.show()

Analysis of Results

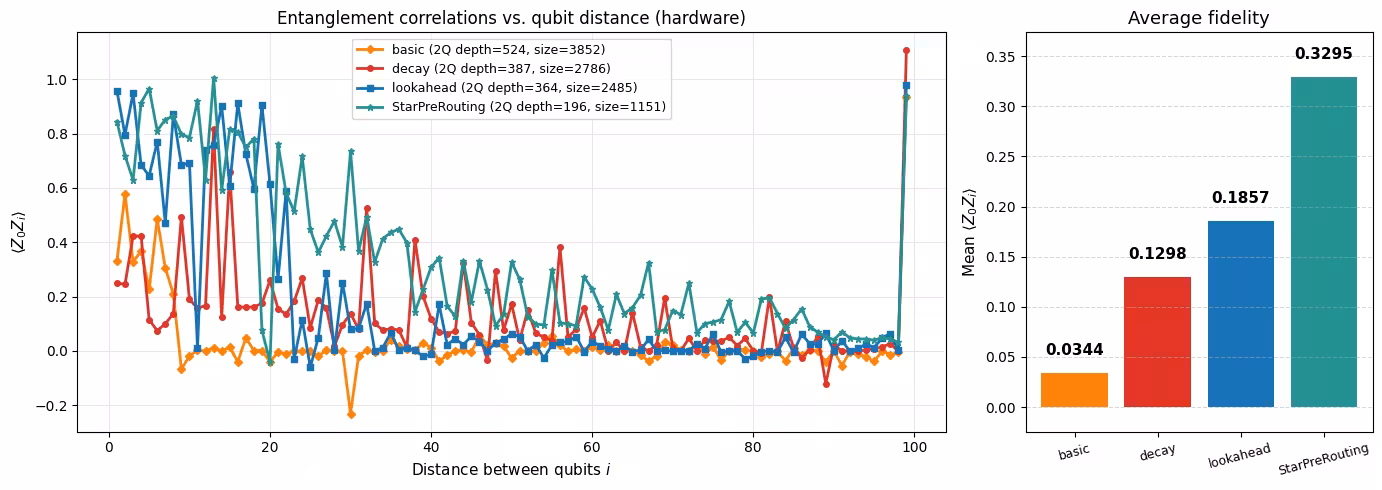

The plot shows the expectation values $\langle Z_0 Z_i \rangle / \langle Z_0 Z_0 \rangle$ as a function of the distance between qubits for three pass manager configurations with increasing levels of optimization. In the ideal case, these values remain close to 1, indicating strong correlations across the circuit. As the distance increases, noise and accumulated errors lead to a decay in correlations, revealing how well each transpilation strategy preserves the underlying structure of the state.

Among the three configurations, pm_1 clearly performs the worst. Its correlation values decay rapidly as the distance increases and approach zero much earlier than the other two configurations. This behavior is consistent with its larger circuit depth and gate count, where accumulated noise quickly degrades long-range correlations.

Both pm_2 and pm_3 represent significant improvements over pm_1 across essentially all distances. On average, pm_3 exhibits the strongest overall performance, maintaining higher correlation values over longer distances and showing a more gradual decay. This aligns with its more aggressive optimization, which produces shallower circuits that are generally more robust to noise accumulation.

That said, pm_2 shows noticeably better accuracy at short distances compared to pm_3, despite having a slightly larger depth and gate count. This suggests that circuit depth alone does not fully determine performance; the specific structure produced by the transpilation, including how entangling gates are arranged and how errors propagate through the circuit, also plays an important role. In some cases, the transformations applied by pm_2 appear to better preserve local correlations, even if they do not scale as well to longer distances.

Taken together, these results highlight a trade-off between circuit compactness and circuit structure. While increased optimization generally improves long-range stability, the best performance for a given observable depends on both reducing circuit depth and producing a structure that is well matched to the noise characteristics of the hardware.

Part II. Configuring the heuristic in SABRE and using Serverless

In addition to adjusting trial numbers, SABRE supports customization of the routing heuristic used during transpilation. By default, SabreLayout employs the decay heuristic, which dynamically weights qubits based on their likelihood of being swapped. To use a different heuristic (such as the lookahead heuristic), you can create a custom SabreSwap pass and connect it to SabreLayout by running a PassManager with FullAncillaAllocation, EnlargeWithAncilla, and ApplyLayout. When using SabreSwap as a parameter for SabreLayout, only one layout trial is performed by default. To efficiently run multiple layout trials, we leverage the serverless runtime for parallelization. For more about serverless, see the Serverless documentation.

How to Change the Routing Heuristic

1. Create a custom SabreSwap pass with the desired heuristic.
2. Use this custom SabreSwap as the routing method for the SabreLayout pass.

While it is possible to run multiple layout trials using a loop, serverless runtime is the better choice for large-scale and more vigorous experiments. Serverless supports parallel execution of layout trials, significantly speeding up the optimization of larger circuits and large experimental sweeps. This makes it especially valuable when working with resource-intensive tasks or when time efficiency is critical.

This section focuses solely on step 2 of optimization: minimizing circuit size and depth to achieve the best possible transpiled circuit. Building on the earlier results, we now explore how heuristic customization and serverless parallelization can further enhance optimization performance, making it suitable for large-scale quantum circuit transpilation.

Results without serverless runtime (1 layout trial):

swap_trials = 1000

# Default PassManager with `SabreLayout` and `SabreSwap`, using heuristic "decay"
sr_default = SabreSwap(
    coupling_map=cmap, heuristic="decay", trials=swap_trials, seed=seed
)
sl_default = SabreLayout(
    coupling_map=cmap, routing_pass=sr_default, seed=seed
)
pm_default = generate_preset_pass_manager(
    optimization_level=3, backend=backend, seed_transpiler=seed
)
pm_default.layout.replace(index=2, passes=sl_default)
pm_default.routing.replace(index=1, passes=sr_default)

t0 = time.time()
tqc_default = pm_default.run(qc)
t_default = time.time() - t0
size_default = tqc_default.size()
depth_default = tqc_default.depth(lambda x: x.operation.num_qubits == 2)

# Custom PassManager with `SabreLayout` and `SabreSwap`, using heuristic "lookahead"
sr_custom = SabreSwap(
    coupling_map=cmap, heuristic="lookahead", trials=swap_trials, seed=seed
)
sl_custom = SabreLayout(coupling_map=cmap, routing_pass=sr_custom, seed=seed)
pm_custom = generate_preset_pass_manager(
    optimization_level=3, backend=backend, seed_transpiler=seed
)
pm_custom.layout.replace(index=2, passes=sl_custom)
pm_custom.routing.replace(index=1, passes=sr_custom)

t0 = time.time()
tqc_custom = pm_custom.run(qc)
t_custom = time.time() - t0
size_custom = tqc_custom.size()
depth_custom = tqc_custom.depth(lambda x: x.operation.num_qubits == 2)

print(
    f"Default (heuristic='decay')    : Depth {depth_default}, Size {size_default}, Time {t_default}"
)
print(
    f"Custom  (heuristic='lookahead'): Depth {depth_custom}, Size {size_custom}, Time {t_custom}"
)

Default (heuristic='decay')    : Depth 443, Size 3115, Time 1.034372091293335
Custom  (heuristic='lookahead'): Depth 432, Size 2856, Time 0.6669301986694336

Here we see that the lookahead heuristic performs better than the decay heuristic in terms of circuit depth, size, and time. This improvements highlights how we can improve SABRE beyond just trials and iterations for your specific circuit and hardware constraints. Note that these results are based on a single layout trial. To achieve more accurate results, we recommend running multiple layout trials, which can be done efficiently using the serverless runtime.

Results with serverless runtime (multiple layout trials)

Qiskit Serverless requires setting up your workload’s .py files into a dedicated directory. The following code cell is a Python file in the source_files directory named transpile_remote.py. This file contains the function that runs the transpilation process.

# This cell is hidden from users, it makes sure the `source_files` directory exists
from pathlib import Path

Path("source_files").mkdir(exist_ok=True)

%%writefile source_files/transpile_remote.py
import time
from qiskit.transpiler.preset_passmanagers import generate_preset_pass_manager
from qiskit.transpiler.passes import SabreLayout, SabreSwap
from qiskit.transpiler import CouplingMap
from qiskit_serverless import get_arguments, save_result, distribute_task, get
from qiskit_ibm_runtime import QiskitRuntimeService

@distribute_task(target={
    "cpu": 1,
    "mem": 1024 * 1024 * 1024
})
def transpile_remote(qc, optimization_level, backend_name, seed, swap_trials, heuristic):
    """Transpiles an abstract circuit into an ISA circuit for a given backend."""

    service = QiskitRuntimeService()
    backend = service.backend(backend_name)

    pm = generate_preset_pass_manager(
        optimization_level=optimization_level,
        backend=backend,
        seed_transpiler=seed
    )

    # Changing the `SabreLayout` and `SabreSwap` passes to use the custom configurations
    cmap = CouplingMap(backend().configuration().coupling_map)
    sr = SabreSwap(coupling_map=cmap, heuristic=heuristic, trials=swap_trials, seed=seed)
    sl = SabreLayout(coupling_map=cmap, routing_pass=sr, seed=seed)
    pm.layout.replace(index=2, passes=sl)
    pm.routing.replace(index=1, passes=sr)

    # Measure the transpile time
    start_time = time.time()  # Start timer
    tqc = pm.run(qc)  # Transpile the circuit
    end_time = time.time()  # End timer

    transpile_time = end_time - start_time  # Calculate the elapsed time
    return tqc, transpile_time  # Return both the transpiled circuit and the transpile time

# Get program arguments
arguments = get_arguments()
circuit = arguments.get("circuit")
backend_name = arguments.get("backend_name")
optimization_level = arguments.get("optimization_level")
seed_list = arguments.get("seed_list")
swap_trials = arguments.get("swap_trials")
heuristic = arguments.get("heuristic")

# Transpile the circuits
transpile_worker_references = [
    transpile_remote(circuit, optimization_level, backend_name, seed, swap_trials, heuristic)
    for seed in seed_list
]

results_with_times = get(transpile_worker_references)

# Separate the transpiled circuits and their transpile times
transpiled_circuits = [result[0] for result in results_with_times]
transpile_times = [result[1] for result in results_with_times]

# Save both results and transpile times
save_result({"transpiled_circuits": transpiled_circuits, "transpile_times": transpile_times})

Overwriting source_files/transpile_remote.py

The following cell uploads the transpile_remote.py file as a Qiskit Serverless program under the name transpile_remote_serverless.

serverless = QiskitServerless()

transpile_remote_demo = QiskitFunction(
    title="transpile_remote_serverless",
    entrypoint="transpile_remote.py",
    working_dir="./source_files/",
)
serverless.upload(transpile_remote_demo)
transpile_remote_serverless = serverless.load("transpile_remote_serverless")

Generate 20 different seeds to represent 20 different layout trials.

num_seeds = 20  # represents the different layout trials
seed_list = [seed + i for i in range(num_seeds)]

Run the uploaded program and pass inputs for lookahead heuristic.

job_lookahead = transpile_remote_serverless.run(
    circuit=qc,
    backend_name=backend.name,
    optimization_level=3,
    seed_list=seed_list,
    swap_trials=swap_trials,
    heuristic="lookahead",
)

job_lookahead.job_id

'15767dfc-e71d-4720-94d6-9212f72334c2'

job_lookahead.status()

'QUEUED'

Receive the logs and results from the serverless runtime.

logs_lookahead = job_lookahead.logs()
print(logs_lookahead)

No logs yet.

Once a program is DONE, you can use job.results() to fetch the result stored in save_result().

# Run the job with lookahead heuristic
start_time = time.time()
results_lookahead = job_lookahead.result()
end_time = time.time()

job_lookahead_time = end_time - start_time

Now perform the same for decay heuristic.

job_decay = transpile_remote_serverless.run(
    circuit=qc,
    backend_name=backend.name,
    optimization_level=3,
    seed_list=seed_list,
    swap_trials=swap_trials,
    heuristic="decay",
)

job_decay.job_id

'00418c76-d6ec-4bd8-9f70-05d0fa14d4eb'

logs_decay = job_decay.logs()
print(logs_decay)

No logs yet.

# Run the job with the decay heuristic
start_time = time.time()
results_decay = job_decay.result()
end_time = time.time()

job_decay_time = end_time - start_time

# Extract transpilation times
transpile_times_decay = results_decay["transpile_times"]
transpile_times_lookahead = results_lookahead["transpile_times"]

# Calculate total transpilation time for serial execution
total_transpile_time_decay = sum(transpile_times_decay)
total_transpile_time_lookahead = sum(transpile_times_lookahead)

# Print total transpilation time
print("=== Total Transpilation Time (Serial Execution) ===")
print(f"Decay Heuristic    : {total_transpile_time_decay:.2f} seconds")
print(f"Lookahead Heuristic: {total_transpile_time_lookahead:.2f} seconds")

# Print serverless job time (parallel execution)
print("\n=== Serverless Job Time (Parallel Execution) ===")
print(f"Decay Heuristic    : {job_decay_time:.2f} seconds")
print(f"Lookahead Heuristic: {job_lookahead_time:.2f} seconds")

# Calculate and print average runtime per transpilation
avg_transpile_time_decay = total_transpile_time_decay / num_seeds
avg_transpile_time_lookahead = total_transpile_time_lookahead / num_seeds
avg_job_time_decay = job_decay_time / num_seeds
avg_job_time_lookahead = job_lookahead_time / num_seeds

print("\n=== Average Time Per Transpilation ===")
print(f"Decay Heuristic (Serial)    : {avg_transpile_time_decay:.2f} seconds")
print(f"Decay Heuristic (Serverless): {avg_job_time_decay:.2f} seconds")
print(
    f"Lookahead Heuristic (Serial)    : {avg_transpile_time_lookahead:.2f} seconds"
)
print(
    f"Lookahead Heuristic (Serverless): {avg_job_time_lookahead:.2f} seconds"
)

# Calculate and print serverless improvement percentage
decay_improvement_percentage = (
    (total_transpile_time_decay - job_decay_time) / total_transpile_time_decay
) * 100
lookahead_improvement_percentage = (
    (total_transpile_time_lookahead - job_lookahead_time)
    / total_transpile_time_lookahead
) * 100

print("\n=== Serverless Improvement ===")
print(f"Decay Heuristic    : {decay_improvement_percentage:.2f}%")
print(f"Lookahead Heuristic: {lookahead_improvement_percentage:.2f}%")

=== Total Transpilation Time (Serial Execution) ===
Decay Heuristic    : 112.37 seconds
Lookahead Heuristic: 85.37 seconds

=== Serverless Job Time (Parallel Execution) ===
Decay Heuristic    : 5.72 seconds
Lookahead Heuristic: 5.85 seconds

=== Average Time Per Transpilation ===
Decay Heuristic (Serial)    : 5.62 seconds
Decay Heuristic (Serverless): 0.29 seconds
Lookahead Heuristic (Serial)    : 4.27 seconds
Lookahead Heuristic (Serverless): 0.29 seconds

=== Serverless Improvement ===
Decay Heuristic    : 94.91%
Lookahead Heuristic: 93.14%

These results demonstrate the substantial efficiency gains from using serverless execution for quantum circuit transpilation. Compared to serial execution, serverless execution dramatically reduces overall runtime for both the decay and lookahead heuristics by parallelizing independent transpilation trials. While serial execution reflects the full cumulative cost of exploring multiple layout trials, the serverless job times highlight how parallel execution collapses this cost into a much shorter wall-clock time. As a result, the effective time per transpilation is reduced to a small fraction of that required in the serial setting, largely independent of the heuristic used. This capability is particularly important for optimizing SABRE to its fullest potential. Many of SABRE’s strongest performance gains come from increasing the number of layout and routing trials, which can be prohibitively expensive when executed sequentially. Serverless execution removes this bottleneck, enabling large-scale parameter sweeps and deeper exploration of heuristic configurations with minimal overhead.

Overall, these findings show that serverless execution is key to scaling SABRE optimization, making aggressive experimentation and refinement practical compared to serial execution. Obtain the results from the serverless runtime and compare the results of the lookahead and decay heuristics. We will compare the sizes and depths.

# Extract sizes and depths
sizes_lookahead = [
    circuit.size() for circuit in results_lookahead["transpiled_circuits"]
]
depths_lookahead = [
    circuit.depth(lambda x: x.operation.num_qubits == 2)
    for circuit in results_lookahead["transpiled_circuits"]
]
sizes_decay = [
    circuit.size() for circuit in results_decay["transpiled_circuits"]
]
depths_decay = [
    circuit.depth(lambda x: x.operation.num_qubits == 2)
    for circuit in results_decay["transpiled_circuits"]
]

def create_scatterplot(x, y1, y2, xlabel, ylabel, title, labels, colors):
    plt.figure(figsize=(8, 5))
    plt.scatter(
        x, y1, label=labels[0], color=colors[0], alpha=0.8, edgecolor="k"
    )
    plt.scatter(
        x, y2, label=labels[1], color=colors[1], alpha=0.8, edgecolor="k"
    )
    plt.xlabel(xlabel, fontsize=12)
    plt.ylabel(ylabel, fontsize=12)
    plt.title(title, fontsize=14)
    plt.legend(fontsize=10)
    plt.grid(axis="y", linestyle="--", alpha=0.7)
    plt.tight_layout()
    plt.show()

create_scatterplot(
    seed_list,
    sizes_lookahead,
    sizes_decay,
    "Seed",
    "Size",
    "Circuit Size",
    ["lookahead", "Decay"],
    ["blue", "red"],
)
create_scatterplot(
    seed_list,
    depths_lookahead,
    depths_decay,
    "Seed",
    "Depth",
    "Circuit Depth",
    ["lookahead", "Decay"],
    ["blue", "red"],
)

Each point in the scatter plots above represents a layout trial, with the x-axis indicating the circuit depth and the y-axis indicating the circuit size. The results reveal that the lookahead heuristic generally outperforms the decay heuristic in minimizing circuit depth and circuit size. In practical applications, the goal is to identify the optimal layout trial for your chosen heuristic, whether prioritizing depth or size. This can be achieved by selecting the trial with the lowest value for the desired metric. Importantly, increasing the number of layout trials improves the chances of achieving a better result in terms of size or depth, but it comes at the cost of higher computational overhead.

min_depth_lookahead = min(depths_lookahead)
min_depth_decay = min(depths_decay)
min_size_lookahead = min(sizes_lookahead)
min_size_decay = min(sizes_decay)
print(
    "Lookahead: Min Depth",
    min_depth_lookahead,
    "Min Size",
    min_size_lookahead,
)
print("Decay:     Min Depth", min_depth_decay, "Min Size", min_size_decay)

Lookahead: Min Depth 399 Min Size 2452
Decay:     Min Depth 415 Min Size 2611

In our initial comparison using a single layout trial, the lookahead heuristic showed slightly better performance in both circuit depth and size. By extending this study to multiple layout trials using QiskitServerless, we were able to explore a much broader space of SABRE initializations, enabling a more representative comparison between heuristics.

From the scatter plots and the best observed results, it is clear that performance varies significantly with the random seed used by SABRE. Both heuristics exhibit a wide spread in circuit depth and size across seeds, indicating that a single run is often insufficient to capture near-optimal results. This variability highlights the importance of running many trials with different seeds when aiming to minimize depth and/or gate count. Across the full set of trials, both the lookahead and decay heuristics were capable of producing competitive results. In some cases, the decay heuristic matched or even outperformed lookahead for specific seeds. However, for this particular circuit, the best overall results were obtained using the lookahead heuristic, albeit by a modest margin. This suggests that while lookahead provided the strongest outcome here, its advantage over decay is not absolute.

Overall, these results reinforce two key points. First, leveraging many seeds is essential for extracting the best possible performance from SABRE, regardless of the heuristic used. Second, while heuristic choice matters, circuit structure plays a dominant role, and the relative performance of lookahead and decay may differ for other circuits. As such, large-scale, multi-seed experimentation is critical for robust and effective quantum circuit transpilation.

# This cell is hidden from users, it cleans up the `source_files` directory
from pathlib import Path

Path("source_files/transpile_remote.py").unlink()
Path("source_files").rmdir()

Conclusion

In this tutorial, we explored how to optimize large circuits using SABRE in Qiskit. We demonstrated how to configure the SabreLayout pass with different parameters to balance circuit quality and transpilation runtime. We also showed how to customize the routing heuristic in SABRE and use the QiskitServerlessruntime to parallelize layout trials efficiently for when SabreSwap is involved. By adjusting these parameters and heuristics, you can optimize the layout and routing of large circuits, ensuring they are executed efficiently on quantum hardware.

Tutorial survey

Please take this short survey to provide feedback on this tutorial. Your insights will help us improve our content offerings and user experience.

Link to survey
